Isostatic graphite
The fine-grained cold isostatic isotropic graphite produced by our company using isostatic pressing molding production technology has characteristics unmatched by general materials: good electrical and thermal conductivity, high temperature strength, small thermal expansion coefficient, self-lubrication, high temperature , Acid and alkali resistance, corrosion resistance,
Key words:
Classification:
Product Description

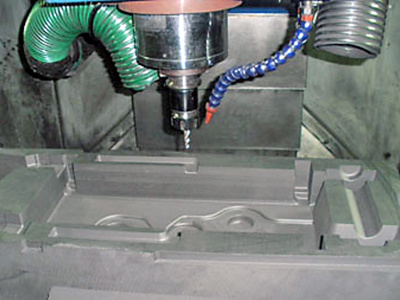

The fine-grained cold isostatic isotropic graphite produced by our company using isostatic pressing molding production technology has characteristics unmatched by general materials: good electrical and thermal conductivity, high temperature strength, small thermal expansion coefficient, self-lubrication, high temperature , Acid and alkali resistance, corrosion resistance, high bulk density, easy processing and other characteristics. It has been more and more widely used in various sectors and industries of the national economy, such as single crystal silicon drawing, polysilicon production and ingot casting, electric discharge machining, metal continuous casting, precious metal smelting, vacuum furnaces, high temperature and corrosion resistant containers And special applications related to the characteristics of this product.
|
Grade |
Bulk Density |
Resistivity |
Thermal Conductivity （100℃) |
Coefficient of thermal expansion （-600℃） |
Shore Hardness |
Compression Strength |
|
|
g/cm³ |
μΩm |
W/m﹒k |
10-6/℃ |
HSD |
Mpa |
|
wx-4 |
1.75 |
8~11 |
121.1 |
5.46 |
42 |
38 |
|
wx-5 |
1.85 |
8~10 |
139.2 |
4.75 |
48 |
46 |
|
wxh-5 |
1.68 |
13~14 |
90 |
5 |
51 |
38 |
|
wx-10 |
1.72 |
12~14 |
85 |
5.5 |
56 |
41 |
|
wxh-6 |
1.9 |
8~9 |
140 |
5.1 |
53 |
55 |
|
wxw-6 |
1.91 |
8~9 |
140 |
5.1 |
53 |
55 |
|
wx-7 |
1.82 |
11~13 |
85 |
5.6 |
65 |
51 |
|
wx-8 |
1.91 |
11~13 |
85 |
5.85 |
70 |
60 |
|
Grade |
Compression Strength |
Modulus of Elasticity |
Porosity |
Purified Ash |
Granularity |
Application |
|
|
Mpa |
Gpa |
% |
PPM |
µm |
|
|
wx-4 |
65 |
9 |
17 |
50 |
13~15 |
Continuous casting, sintering and high temperature casting |
|
wx-5 |
85 |
11.8 |
13 |
50 |
13~15 |
Continuous casting, sintering and high temperature casting |
|
wxh-5 |
86 |
8.8 |
18 |
50 |
13~15 |
EDM |
|
wx-10 |
85 |
10.3 |
16 |
50 |
12 |
EDM and Photovoltaic |
|
wxh-6 |
95 |
12 |
11 |
50 |
8~10 |
Continuous casting, sintering and high temperature casting |
|
wxw-6 |
95 |
11 |
11 |
50 |
8~10 |
Continuous casting, sintering and high temperature casting |
|
wx-7 |
115 |
11 |
12 |
50 |
8~10 |
EDM and Photovoltaic |
|
wx-8 |
135 |
12 |
11 |
50 |
8~10 |
EDM and Photovoltaic、Semiconductor |
Note: ① central location for product performance indicators; ② open porosity, closed porosity sum; ③ Updated: June 10, 2019.
Product main specifications

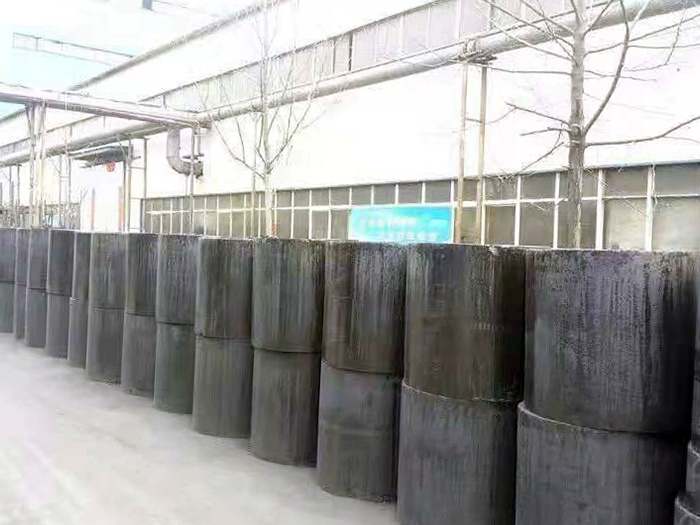

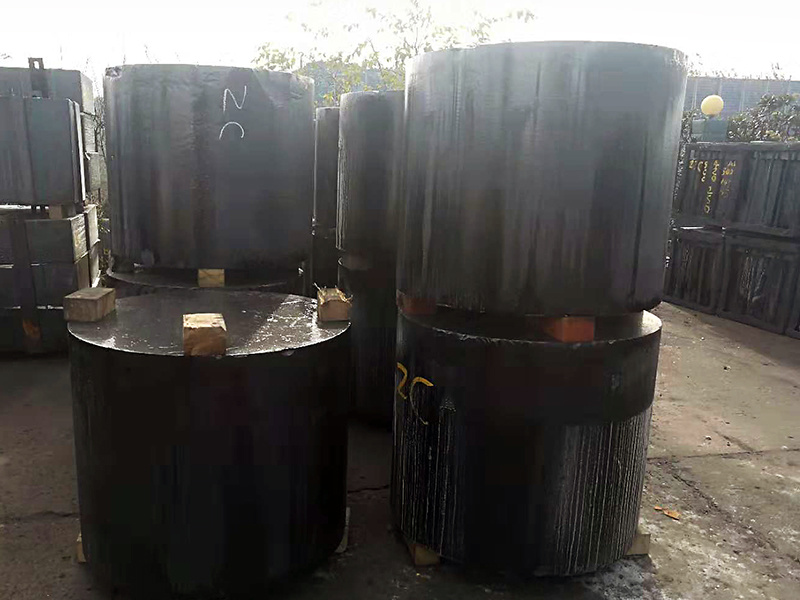

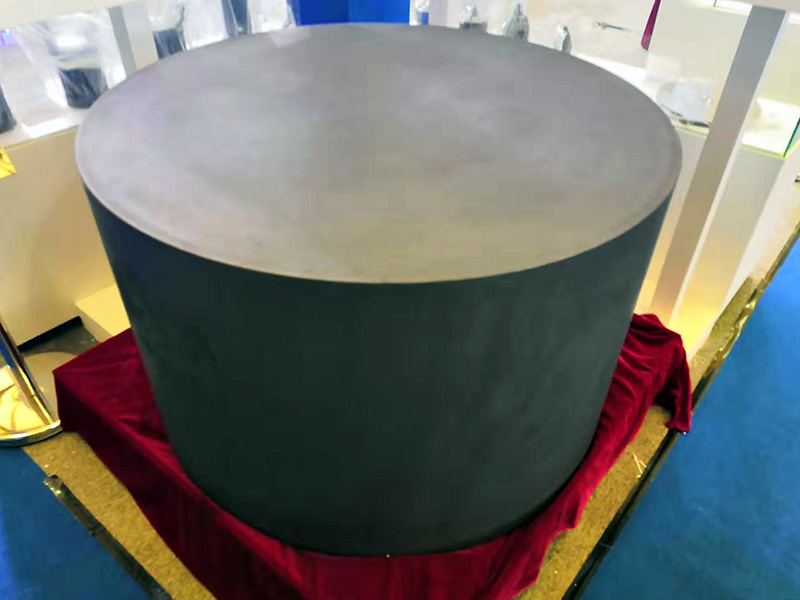

Graphite Block：Φ1150*350mm、Φ880*720mm、Φ830*720mm、Φ760*700mm、Φ700*700mm、 Φ640*630mm、 Φ620*630mm、Φ560*520mm、Φ510*520mm、Φ470*520mm、 Φ380*380mm、 Φ300*520mm、Φ250*520mm、Φ170*320mm

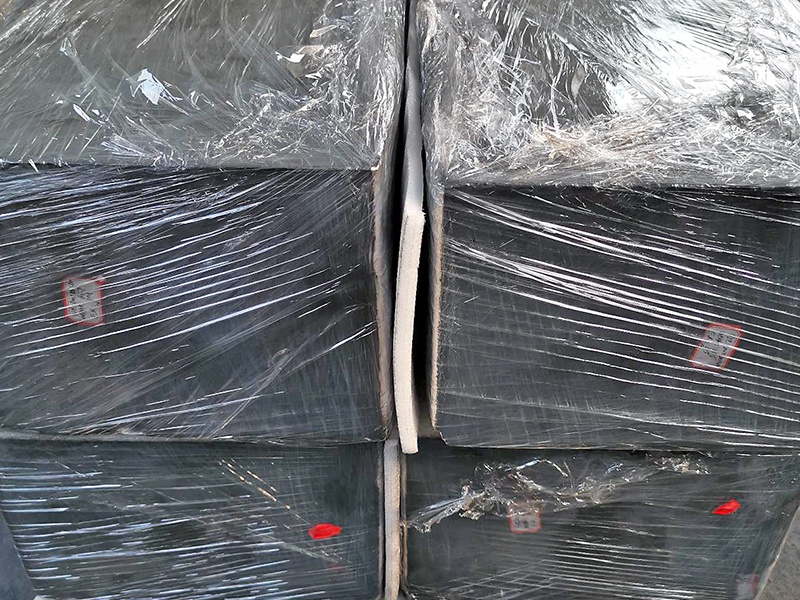

Graphite Round：2150*510*510mm、1850*610*510/410mm、1160*1140*260mm、1250*630/650*270mm、1080*1080*250/350mm、900*310*310/250mm、800*220*220mm、770*210*150/210mm、610*510*210/250mm、550*410*210/250mm、510*310*210/250mm、490*140*140mm、430*260*125/150mm、380*300*150/180mm、340*340*165mm、330*330*150/250mm
